GIN Method (part III)
Clif Kettle & Maren Katterbach
Case History 3 - Wimbleball Dam, England, 2003, 2014
Wimbleball dam is a lightweight but-
tress dam which has suffered seepage
through the grout curtain, and through
the left abutment ever since construc-
tion. Seepage had been increasing
steadily since the construction in
1979 up to 2003, despite at least two
attempts at remedial grouting with
classical techniques.
Because of the poor quality of the
bedrock a very large excavation had
been undertaken during the initial
construction of the dam in 1979. The

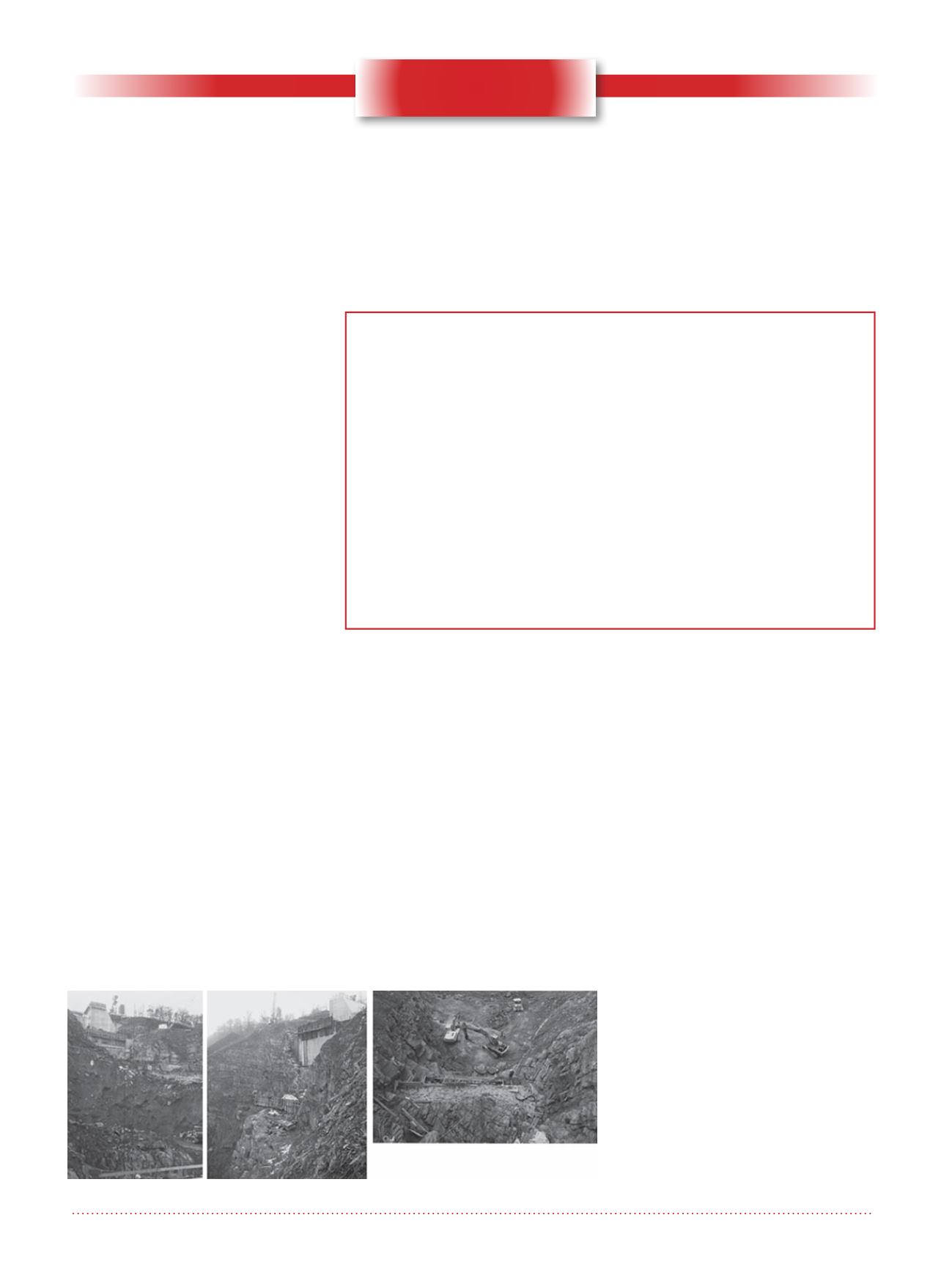

Figure 1. Wimbleball Dam foundation excavation.
ERRATA CORRIGE of the March 2016 Grout Line issue
1) The title of the cover page states: ”Seepage evidence at Carno Dam,
South Wales”. It might not have not been clear that the seepage had occurred
BEFORE the grouting treatment. After the grouting treatment the seepage
disappeared.
2) There was some confusion at pages 45 and 46.
2.1) First of all figure 7 is referring to Carno Dam, and figures 8 to 11 to Lee
tunnel.
2.1) In figures 8 to 11 (Lee Tunnel) some captions were incorrect.
Figure 11 should be figure 8 and figure 8 should be figure 9.
Consequently, the correct sequence is: figure 11, 8, 9 and 10.
The complete and corrected article is downloadable at:
.
com/Articles/42GroutlineMarch 2016.pdf
